Resin Pricing Calculator
Derbyshire Specialist Aggregates has over 30 years of experience in the industry and we continually research to ensure that we provide the highest quality materials for resin bound installations. We strongly believe that using the correct ratio of resin to aggregates is critical in achieving a lasting, durable surface.
We provide 2 sizes for DALTEX UVR resin and recommend the following mix designs (ie the amount of resin and aggregates to be used).
RECOMMENDED MIX DESIGN FOR Performance DALTEX UVR 7.5kg Resin
3 standard bags 2-5mm, 1 standard bag 1-3mm and 1 mini bag DALTEX Binding Quartz sand. This delivers % resin coverage of 7.1%. Coverage approximately 4.0m2 at 15mm and 3.55m2 at 18mm depth.
Disclaimer: All calculations are approximate and no liability can be accepted for shortfalls or surplus.
We recommend that the minimum depth for driveways is a depth of 15mm. For areas with heavy traffic, we recommend a depth of 18mm.
NB. Don't forget to allow for natural undulations. We recommend you over order by 5%-10% to allow for any variances.

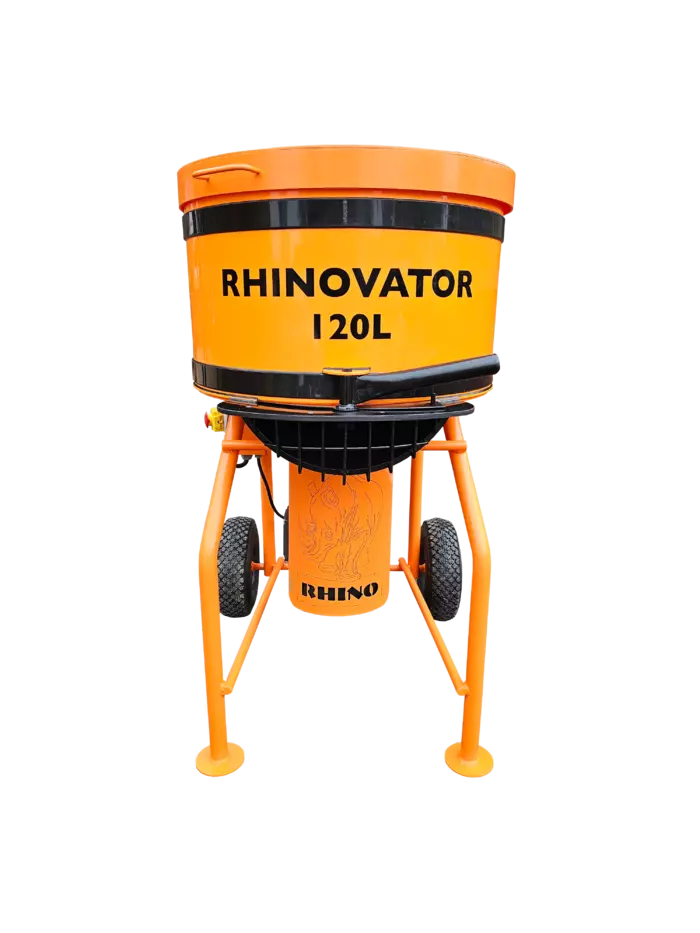

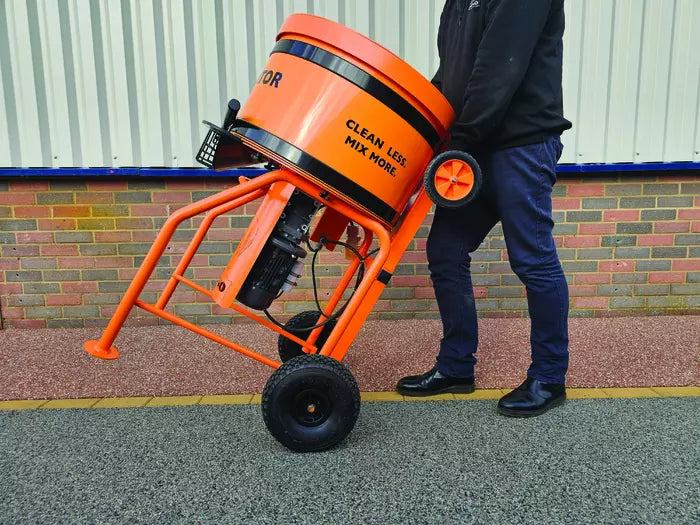

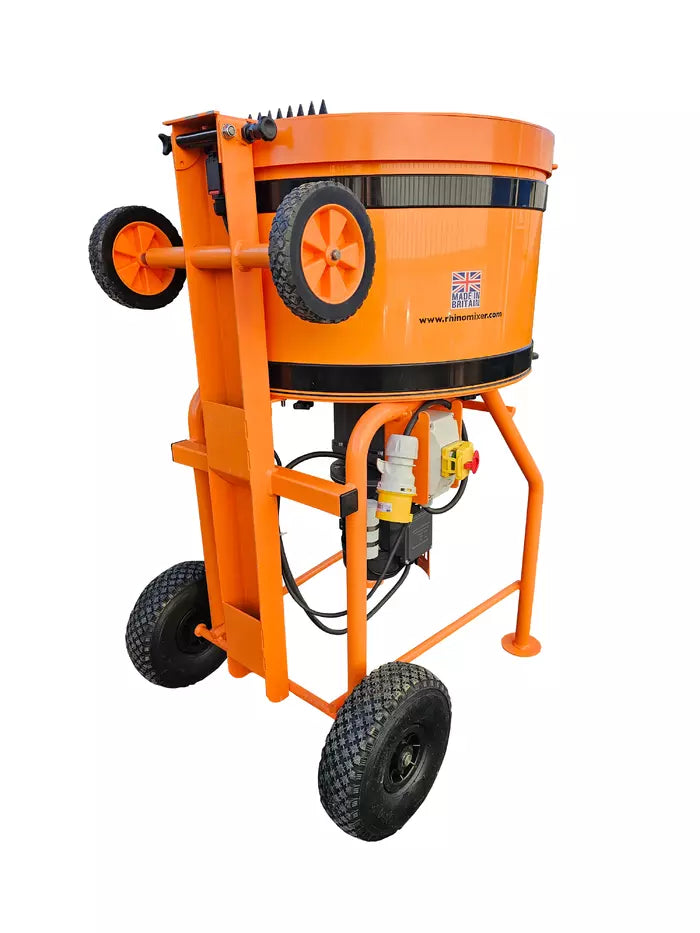

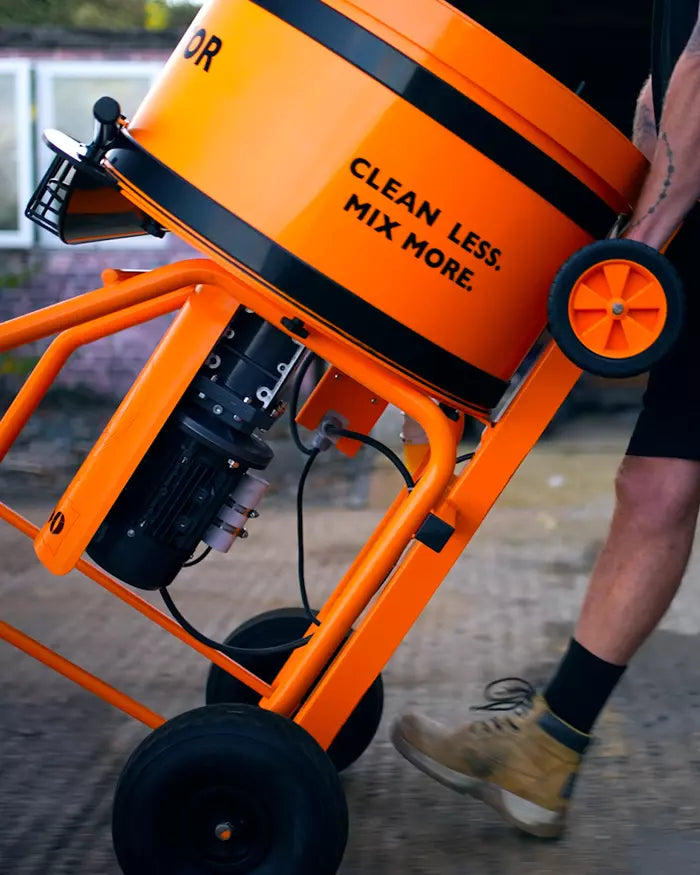

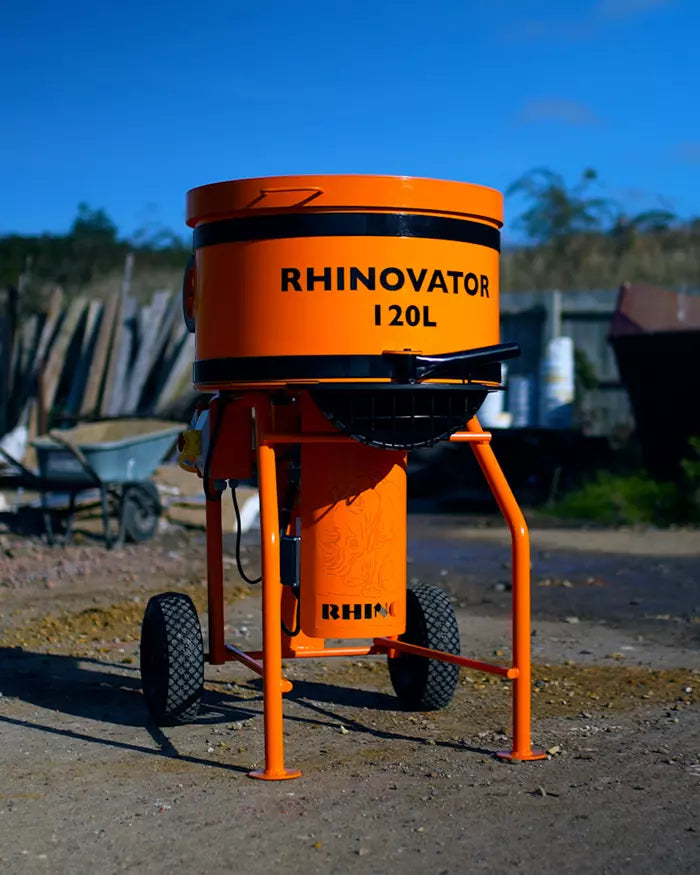

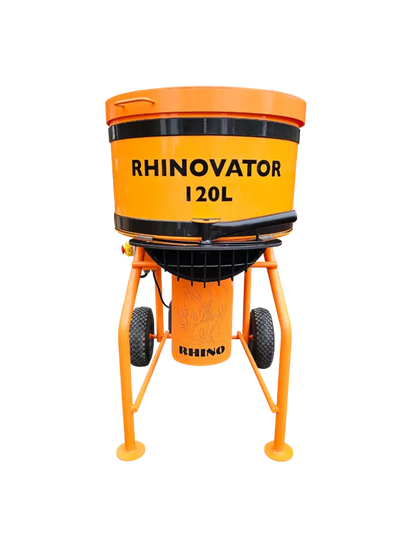

NEW RHINOVATOR FORCED ACTION MIXER CLEAN LESS. MIX MORE!!! Designed and tested by resin bound installers and manufactured in the UK, the NEW Rhinovator resin bound mixer sets a new standard as the world’s first bond resistant, resin bound force action mixer. This innovative, easy to use product was designed by installers, for installers so you can trust that it has all the features a forced action mixer will need for efficiency and performance. The Rhinovator resists permanent bonding with resin – eliminating the need for hazardous and time consuming cleaning methods. Testing has shown a reduction in resin build-up of up to 90% so you can clean less and mix more. The KEY features of the Rhinovator include: Clean less, Mix More Unique bond-resistant polypropylene drum, chute and drive shaft cover ensures REDUCED resin build-up of up to 90% less* making cleaning easier and faster. Quick release ‘no tool’ trap door for easy removal and cleaning. Fully adjustable mixer shovels for optimal mixing. Easy to remove, four-arm mixer head. Health and Safety Prioritised Large capacity 120 litre drum. Quick release ‘lightweight drum (5.5Kg) can be released and exchanged in under a minute without the need for any tools. Unique ‘wear bar’ indicates when drum is close to requiring replacement. Outlet safety grid to prevent user injury Cable ‘holder’ prevents trailing leads being caught in wheels or damage during transport. PROTECTED main switch - shielded by two steel plates, reducing the risk of failure during install Made by Installers, for Installers Heavier robust frame and lower end creates lower centre of gravity and greater stability. Rhinovator is the only machine on the market with a ‘steel spine’ protecting the most vulnerable part of the frame (especially during loading). Larger and repositioned loading wheels with inflatable tyres for easier loading of machine onto vehicles, including pick-ups . Industry-leading 2kW geared motor output. Protective motor shield to prevent damage. 2 x tool caddy’s in the rear of the machine are useful for keeping cleaning tools, tub scrapers etc Proudly Made in Britain Support local craftsmanship and boost British manufacturing. When you choose Rhinovator, you invest in quality and create jobs at home. Specifications for Rhinovator: Motor: 2000 wattVoltage: 1 x 110v / Current: 32AVessel cap: 120LMixer cap: 90LWeight: 95kgHeight: 116cmWidth: 69cmDepth: 92cm (*than conventional steel drums)
